Fixed Collet Chuck
KORRETTO fixed collet chuck is used when a workpiece needs stable collet-style clamping in a fixed or stationary layout. It is suitable for round parts, shafts, sleeves and small precision components where uniform clamping contact is more suitable than jaw clamping. This page covers the fixed collet chuck only and should not be merged with the JHS hydraulic fixed collet chuck page.
Product Overview
The fixed collet chuck is selected for applications where the chuck body remains in a fixed position and the collet provides accurate holding around the workpiece diameter. It is used in fixtures, special machines and spindle-side or stationary workholding layouts depending on the machine design.
The fixed collet chuck shown here is selected for stationary collet clamping layouts. For hydraulic fixed collet chuck applications, use the separate JHS Hydraulic Fixed Collet Chuck series.
Key Features
| Feature | Description |
|---|---|
| Fixed-position clamping | Used in fixed or stationary collet workholding layouts. |
| Collet-style contact | Provides uniform support around round workpieces. |
| Suitable for precision parts | Used for shafts, sleeves and small cylindrical components. |
| Fixture and special-machine use | Can be used where a fixed collet station is required. |
| Separate from JHS hydraulic fixed type | JHS Hydraulic Fixed Collet Chuck is handled as a separate page. |
Typical Applications
- Fixed collet clamping stations
- Round precision parts
- Shafts and sleeves
- Special fixtures
- Stationary or non-rotary workholding layouts
Technical Data and Dimensions

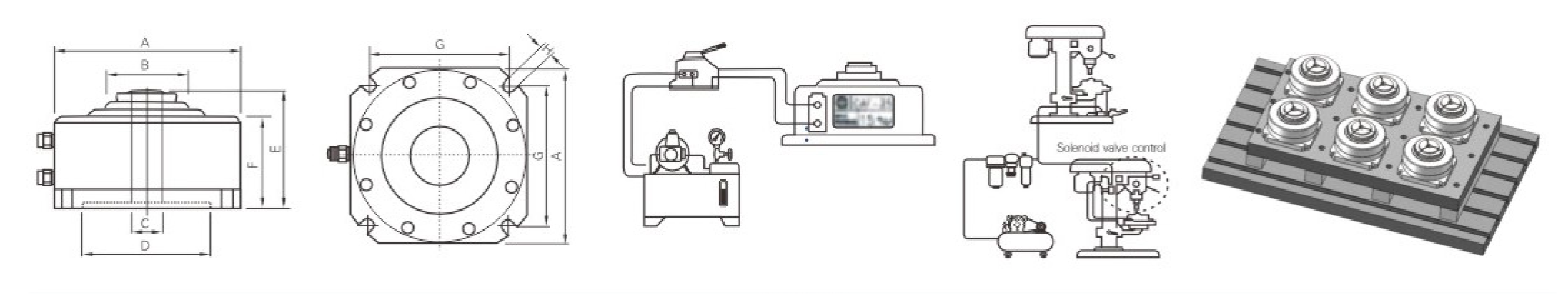

Use the drawing and parameter tables to check collet range, mounting dimensions, actuation method, clamping stroke, fixture layout and workpiece compatibility.
| Model | A | B | C | D | E | F | G | H | Power Source | Operating Pressure (kg/cm²) | Max. Clamping Torque (N·m) | Max. Clamping Diameter | Through Hole Diameter | Matching Fixture | Weight (kg) | Clamping Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JAS-15 | 118 | 40 | 14 | 90 | 76 | 64 | 98.3 | 9 | Air / Hydraulic | 3–15 | 5 | Φ16 | Φ14 | YB-15 | 5 | Front-Push |
| JAS-25 | 144 | 60 | 26 | 100 | 108 | 75 | 115.3 | 9 | Air / Hydraulic | 3–15 | 15 | Φ28 | Φ24 | YB-25 | 9 | Front-Push |
| JAS-40 | 168 | 110 | 40 | 100 | 98 | 77 | 136.5 | 11 | Air / Hydraulic | 3–8 | 30 | Φ50 | Φ39 | C-40 | 12.2 | Front-Push |
FAQ
What is a fixed collet chuck used for?
It is used for fixed-position or stationary collet clamping of round workpieces, shafts, sleeves and small precision parts.
Is this the same as JHS Hydraulic Fixed Collet Chuck?
Fixed Collet Chuck and JHS Hydraulic Fixed Collet Chuck are separate series. Select according to the actuation method, fixture layout and matching drawing.
When should I choose a fixed collet chuck?
Choose it when the workpiece can be held by a collet in a fixed station and uniform round-part contact is required.
What should be checked before selection?
Check the workpiece diameter, collet type, mounting dimensions, actuation method, clamping stroke and fixture layout.
Can this be used instead of a jaw chuck?
It can be used when the workpiece is round and the required clamping range matches the collet system. Jaw chucks may still be better for larger variation or irregular profiles.
