3-Jaw Self-Centering Chuck, Type A
KORRETTO 3-Jaw Self-Centering Chuck Type A is a manual scroll chuck that combines synchronized jaw movement with a short-taper mounting interface. It is used for round and regular workpieces on machines requiring a Type A mounting arrangement.
/IMG_9574.JPG)
Product Overview
The Type A 3-jaw self-centering chuck is selected when the machine spindle requires a short-taper interface and the workpiece can be held by synchronized jaw movement from the internal scroll plate. This Type A version is a 3-jaw scroll chuck with a short-taper mounting interface.
It supports efficient centering and clamping for general turning operations. Selection should confirm chuck size, short-taper number, mounting dimensions, clamping range, workpiece diameter and machine compatibility.
Key Features
| Feature | Description |
|---|---|
| Synchronized 3-jaw clamping | Moves the jaws together for quick centering. |
| Type A short-taper interface | Used when the machine requires a short-taper mounting style. |
| Type A self-centering scroll chuck | Short-taper manual scroll chuck with synchronized three-jaw movement. |
| Good for regular workpieces | Designed for round, hexagonal and similar profiles. |
| Different from independent chucks | Not intended for individual jaw offset adjustment. |
Typical Applications
- Round workpieces
- Hexagonal workpieces
- General lathe turning
- Short-taper spindle setups
- Manual chuck replacement
- Repeated clamping of regular parts
Technical Data and Dimensions

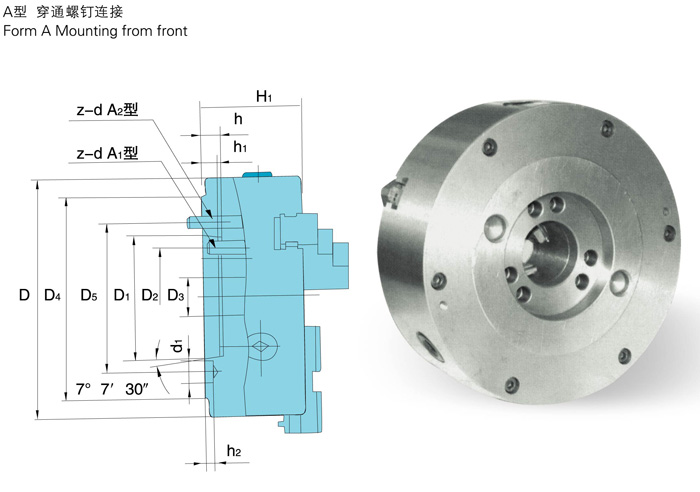

Use the drawing and parameter table to check chuck size, short-taper number, mounting dimensions, clamping range, net weight and machine compatibility.
/k11a-1.jpg)
| Size | D | D1 | D2 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200/A:5 200C/A:5 200A/A:5 | 200 | 82.563 | 61.9 | 40 | 133 | 104.8 | 84 | 14.288 | 12 | 6.5 | 16.3 | 3-M10 | 17 |
| 250/A:6 250C/A:6 200A/A:6 | 250 | 106.375 | 82.6 | 55 | 165 | 133.4 | 98 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 | 31 |
| 325/A:6 325C/A:6 325A/A:6 | 325 | 106.375 | 82.6 | 55 | 165 | 133.4 | 106 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 | 30 |
| 325/A:8 325C/A:8 325A/A:8 | 325 | 139.719 | 111.1 | 78 | 210 | 171.4 | 106 | 17.462 | 14 | 8 | 24.2 | 6-M16 | 52 |
| 380/A:8 380C/A:8 380A/A:8 | 380 | 139.719 | 111.1 | 78 | 210 | 171.4 | 118 | 17.462 | 14 | 8 | 24.2 | 6-M16 | 53 |
| 500/A:11 | 500 | 196.869 | 165.1 | 125 | 280 | 235 | 135 | 19.050 | 16 | 10 | 29.4 | 6-M20 | 159 |
| 500/A:15 | 500 | 285.775 | 247.6 | 200 | 380 | 330.2 | 135 | 20.638 | 17 | 10 | 35.7 | 6-M24 | 159 |
| Size | D | D1 | D3 | D4 | D5 | H | h | h1 | h2 | d1 | z-d | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200/A:4 200C/A:4 200A/A:4 | 200 | 63.513 | 60 | 108 | 82.6 | 86 | — | 10 | 6.5 | 14.7 | 3-M10 | 17 |
| 500/A:11 | 500 | 196.869 | 190 | 280 | 235 | 135 | 20 | 16 | 10 | 29.4 | 6-M20 | 159 |
