3-Jaw Self-Centering Chuck, Type C
KORRETTO 3-Jaw Self-Centering Chuck Type C is a manual lathe scroll chuck with synchronized three-jaw movement and a camlock-style mounting interface. It is selected for machines requiring Type C mounting and for workpieces that need quick centering.
/IMG_9571.JPG)
Product Overview
The Type C 3-jaw self-centering chuck is used when the spindle interface requires a camlock-style mounting arrangement. The internal scroll plate moves the jaws together to center round or regular workpieces efficiently during manual turning operations. This Type C version is a 3-jaw scroll chuck with a camlock-style mounting interface.
Selection should confirm chuck size, spindle nose type, mounting dimensions, clamping range, workpiece diameter and machine compatibility.
Key Features
| Feature | Description |
|---|---|
| Camlock-style self-centering scroll chuck | Type C manual scroll chuck for machines requiring a camlock-style spindle interface. |
| Self-centering scroll action | Moves three jaws together for quick workpiece centering. |
| Manual lathe operation | Suitable for general turning setups. |
| Efficient repeated clamping | Useful for regular workpieces requiring frequent loading. |
| Separate from independent chucks | Not for individual jaw offset adjustment. |
Typical Applications
- Type C spindle setups
- Round bar and regular workpieces
- General manual turning
- Repeated workpiece loading
- Conventional lathe workholding
- Chuck replacement for compatible machines
Technical Data and Dimensions

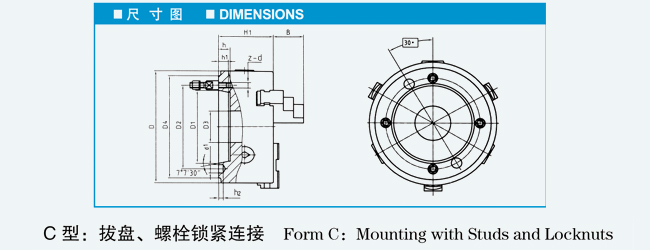

Use the drawing and parameter table to check chuck size, spindle nose number, camlock mounting dimensions, clamping range and machine compatibility.
/11c-1.jpg)
| Model | D | D1 | D2 | D3 | D4 | H1 | h | h1 | h2 | d1 | z-d | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K11125/C3 | 125 | 53.975 | 75 | 25 | 102 | 63 | 13 | 10 | — | — | 3-M10 | 6 |
| K11125/C4 | 125 | 63.513 | 85 | 25 | 112 | 63 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 6 |
| K11160/C3；K11160A/C3 | 160 | 53.975 | 75 | 40 | 102 | 76 | 13 | 10 | — | — | 3-M10 | 10 |
| K11160/C4；K11160A/C4 | 160 | 63.513 | 85 | 40 | 112 | 70 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 10 |
| K11160/C5；K11160A/C5 | 160 | 82.563 | 104.8 | 40 | 135 | 73 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 10 |
| K11200/C4；K11200A/C4；K11200C/C4 | 200 | 63.513 | 85 | 50 | 112 | 84 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 19 |
| K11200/C5；K11200A/C5；K11200C/C5 | 200 | 82.563 | 104.8 | 50 | 135 | 84 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 19 |
| K11200/C6；K11200A/C6；K11200C/C6 | 200 | 106.375 | 133.4 | 50 | 170 | 84 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 19 |
| K11250/C5；K11250A/C5；K11250C/C5 | 250 | 82.563 | 104.8 | 70 | 135 | 95 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 33.4 |
| K11250/C6；K11250A/C6；K11250C/C6 | 250 | 106.375 | 133.4 | 70 | 170 | 95 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 33.4 |
| K11250/C8；K11250A/C8；K11250C/C8 | 250 | 139.719 | 171.4 | 80 | 220 | 95 | 18 | 14 | 8 | 24.2 | 4-M16 | 33.4 |
| K11320C/C6；K11320A/C6 | 320 | 106.375 | 133.4 | 100 | 170 | 103.5 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 57 |
| K11320C/C8；K11320A/C8 | 320 | 139.719 | 171.4 | 100 | 220 | 106 | 18 | 14 | 8 | 24.2 | 4-M16 | 57 |
| K11315C/C11 | 320 | 196.869 | 235 | 100 | 290 | 112.5 | 20 | 16 | 10 | 29.4 | 6-M20 | 56 |
| K11320C/C11；K11320A/C11 | 320 | 196.869 | 235 | 100 | 290 | 103.5 | 20 | 16 | 10 | 29.4 | 6-M20 | 57 |
| K11400C/C11 | 400 | 196.869 | 235 | 130 | 290 | 120 | 20 | 16 | 10 | 29.4 | 6-M20 | 86 |
| K11500C/C11 | 500 | 196.869 | 235 | 200 | 290 | 135 | 20 | 16 | 10 | 29.4 | 6-M20 | 159 |
