Simple Horizontal and Vertical Indexing Plate
Simple horizontal and vertical indexing plates are used for basic fixed-angle indexing and lighter milling work. They are suitable when the process needs practical fixed division positions without the stronger indexing structure required by super indexing plates.
Product Overview

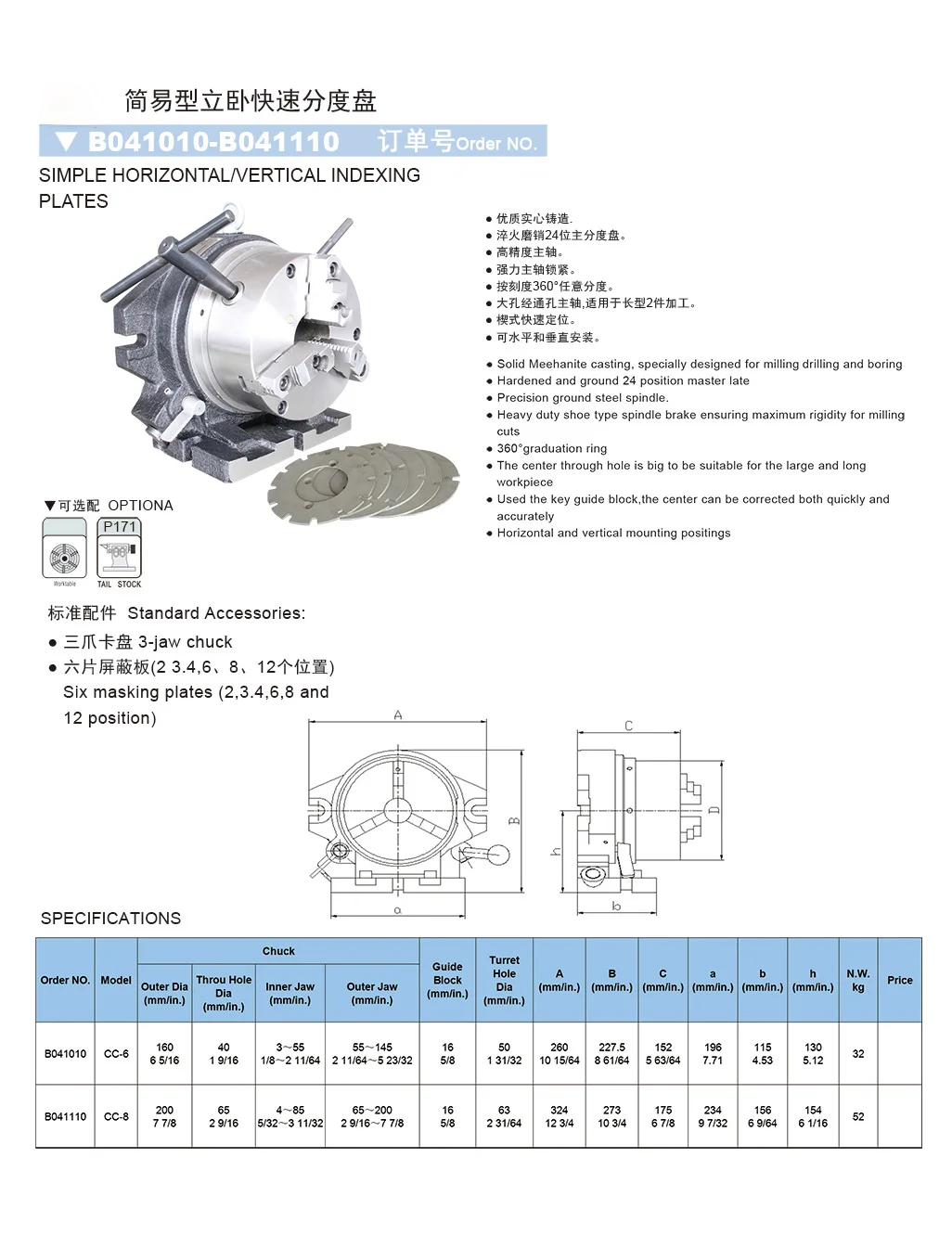

This series includes CC-6 and CC-8 simple indexing plates with standard jaw chuck and fixed indexing positions. It is suitable for practical fixed-division operations in horizontal and vertical setups.
Typical Applications
- Basic fixed-angle indexing positions for drilling and milling.
- Simple horizontal or vertical installation arrangements.
- Lighter machining work requiring practical fixed division points.
Key Features
Simple indexing structure for practical fixed-division applications.
Supports horizontal and vertical mounting direction.
Standard jaw chuck and indexing plate configuration.
Suitable for CC-6 and CC-8 size range selection.
Used for lighter drilling and milling indexing operations.
Parameters and Dimensions
Dimension drawings and tabulated data below can be used for selection and installation checks.
Model and Dimension Data
Standard accessories include a 3-jaw chuck and indexing plate for 2, 3, 4, 6, 8 and 12 positions.
| Order No. | Model | Chuck Dia. | Through Hole Dia. | Inner Jaw Clamping | Outer Jaw Clamping | Guide Block | Turret Bore | A | B | C | a | b | h | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B041010 | CC-6 | 160 / 6 5/16 | 40 / 1 9/16 | 3~55 / 1/8~2 11/64 | 55~145 / 2 11/64~5 23/32 | 16 / 5/8 | 50 / 1 31/32 | 260 / 10 15/64 | 227.5 / 8 61/64 | 152 / 5 63/64 | 196 / 7.71 | 115 / 4.53 | 130 / 5.12 | 32 |
| B041110 | CC-8 | 200 / 7 7/8 | 65 / 2 9/16 | 4~85 / 5/32~3 11/32 | 65~200 / 2 9/16~7 7/8 | 16 / 5/8 | 63 / 2 31/64 | 324 / 12 3/4 | 273 / 10 3/4 | 175 / 6 7/8 | 234 / 9 7/32 | 156 / 6 9/64 | 154 / 6 1/16 | 52 |
Selection Notes
- Workpiece diameter and required through-hole size.
- Required fixed indexing positions (2 / 3 / 4 / 6 / 8 / 12).
- Required jaw holding range and model (CC-6 / CC-8).
- Machine interface and available installation space.
- Process type and required indexing method.
FAQ
What is a Simple Horizontal and Vertical Indexing Plate used for?
It is used for basic fixed-division indexing operations such as drilling, slot milling and circular positioning where practical fixed angle positions are needed.
How is it different from a super indexing plate?
A simple indexing plate is selected for basic fixed-angle indexing and lighter work. A super indexing plate is selected when stronger support and more robust indexing are required.
How is it different from a chuck or indexing chuck?
This product is a table-side indexing accessory for milling and drilling work. It is not a spindle-side chuck or an indexing chuck used in turning applications.
What machine table or mounting interface should be confirmed?
Check the machine table size, mounting slots, chuck interface, available operating space and the required installation direction.
What workpiece size or load should be checked?
Confirm the workpiece diameter, weight and fixture size so the selected indexing plate is suitable for the setup.
What indexing requirement should be confirmed?
Check the required fixed division positions and the machining process before the model is confirmed.
What should be checked before installation?
Check the mounting direction, chuck fixing condition, fixture interference and handle operating space before installation.
What information is needed for quotation?
Please provide the machine model, workpiece size, chuck size, required fixed division positions and the current fixture layout.
