KORRETTO · Rotary tables & dividing heads
Horizontal and vertical rotary tables, super indexing plates, simple indexing plates, universal dividing heads and tilting rotary tables for milling, indexing and multi-angle machining. KORRETTO supplies dividing and rotary positioning solutions for machining setups that require repeatable angular positioning and stable workpiece support.
Not sure whether you need a rotary table, dividing head or indexing plate? Send the machine type, workpiece size, required indexing angle, mounting direction and machining process, and we will help check the suitable series.
Select the series according to workpiece size, machine table, mounting direction, indexing method and required angular positioning. Rotary tables, dividing heads and indexing plates are used for different indexing and multi-angle machining conditions.

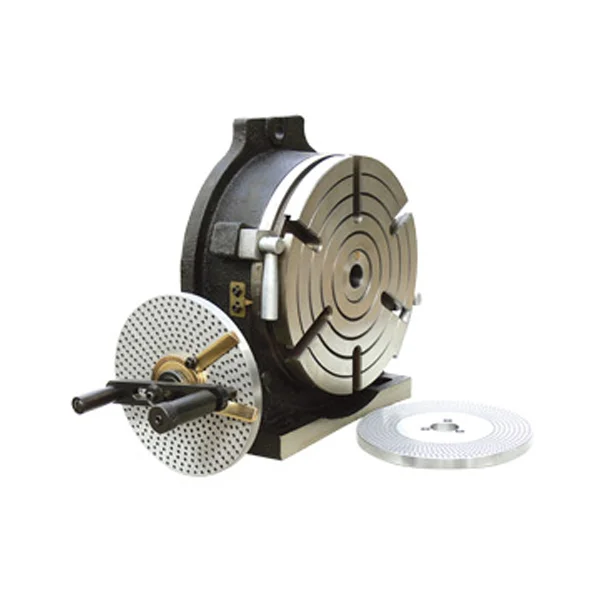

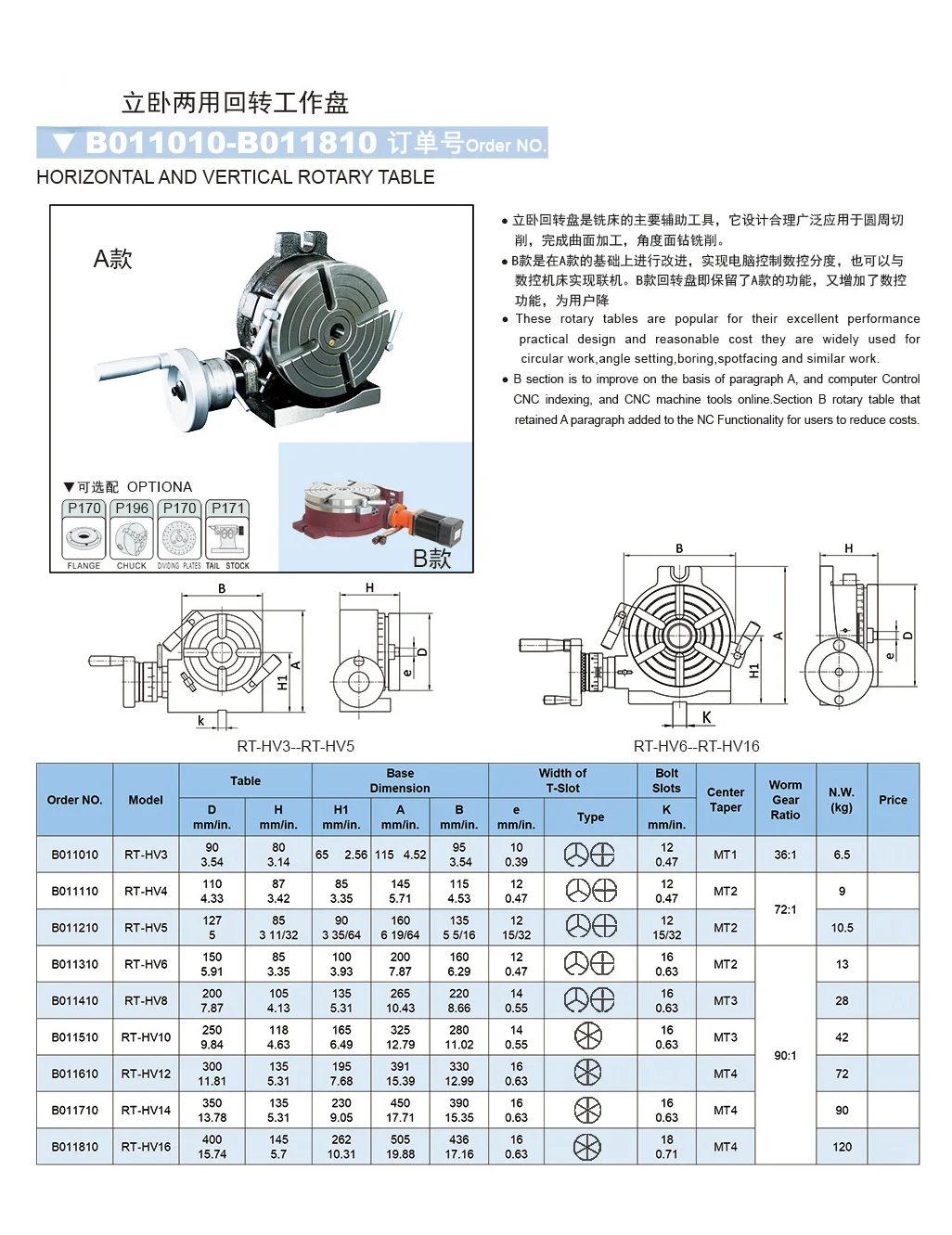

Horizontal and vertical rotary tables are used for rotary positioning on milling machines and machining centers. They can be mounted horizontally or vertically to support different workpiece orientations and angular machining requirements.

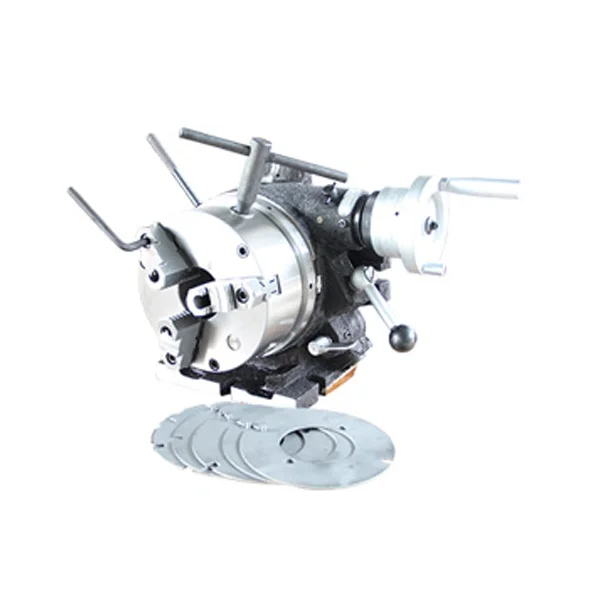

Horizontal and vertical super indexing plates are used for repeatable indexing and angular positioning. They are suitable for machining setups that require stable indexing and flexible mounting direction.

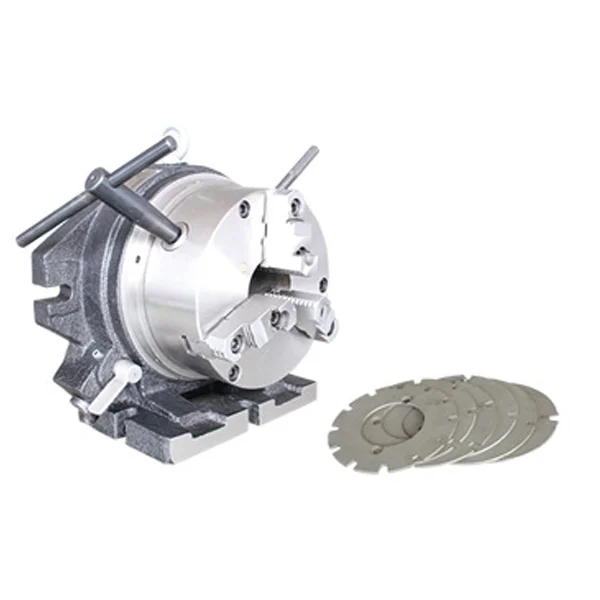

Simple horizontal and vertical indexing plates are used when the machining process only needs simple indexing positions. They provide a practical option for fixed-angle machining and lighter indexing work.

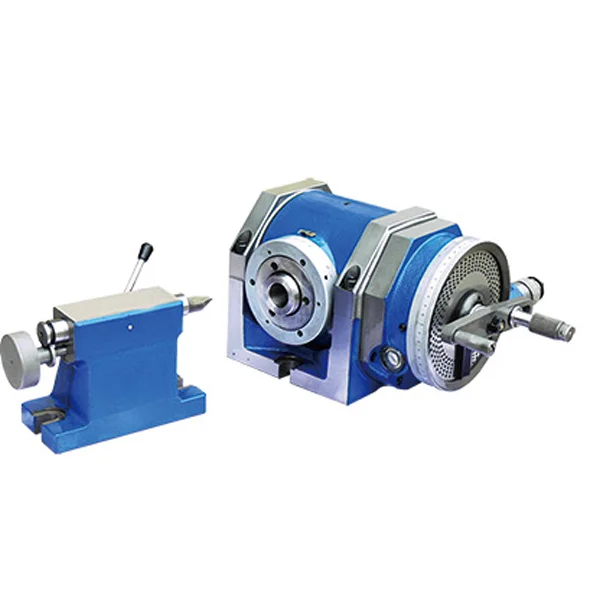

Universal dividing heads are used for dividing and indexing workpieces during milling operations. They are suitable for gears, splines, polygonal parts and other machining tasks that require controlled angular division.

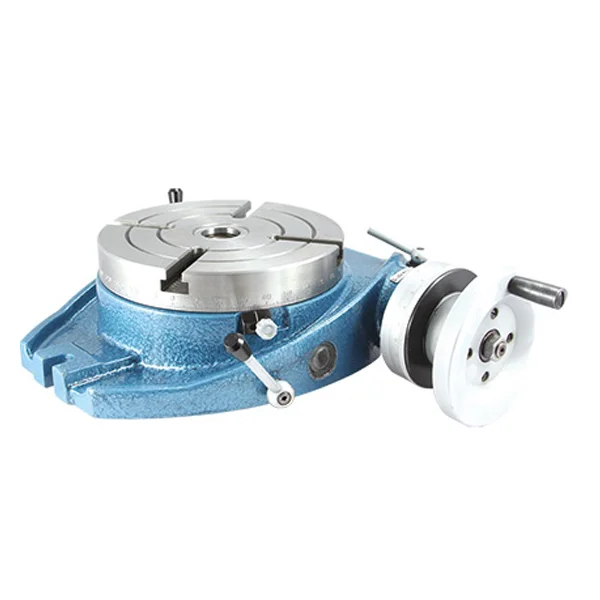

TS-A series rotary tables are used for horizontal rotary positioning and indexing operations. They are suitable for larger table sizes and machining setups that require stable rotary support.

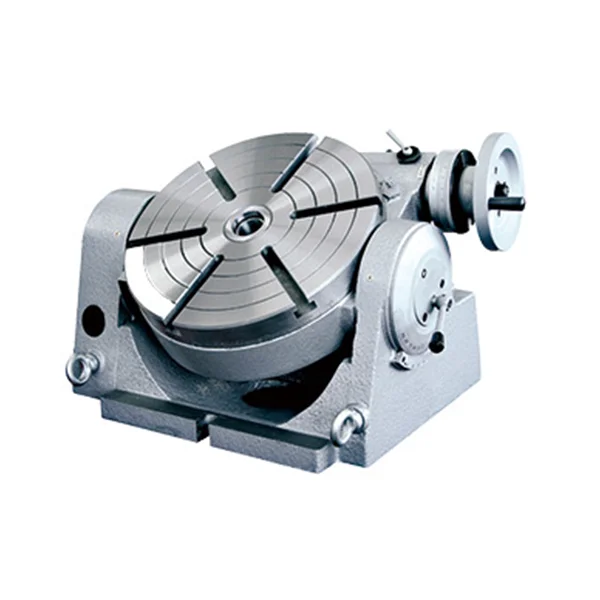

Tilting rotary tables allow the workpiece to be positioned at different tilt angles. They are suitable for inclined machining, multi-angle milling and setups where both rotation and tilt are required.
Send the machine model, table size, workpiece dimensions, required indexing angle, mounting direction and machining process. We can help compare rotary tables, dividing heads and indexing plates for your setup.
Before selecting a dividing head, indexing plate or rotary table, confirm the machine table, workpiece size, required indexing angle, mounting direction and load. These details determine whether a rotary table, dividing head or indexing plate is more suitable.
Confirm whether the process needs continuous rotation, fixed division positions or controlled angular division. Different series support different indexing methods.
Some products can be used horizontally and vertically, while others are designed mainly for horizontal or tilting applications. Match the mounting direction to the machine setup.
The table size, center height and load capacity should match the workpiece dimensions and machining forces.
Gear milling, spline cutting, circular positioning, drilling patterns and inclined milling may require different dividing or rotary positioning solutions.
Check the available table space, T-slot layout, fixture height and tool clearance before selecting the series.
| Series | Typical Use | Key Selection Point |
|---|---|---|
| Horizontal and Vertical Rotary Table | Rotary positioning in horizontal or vertical mounting | Use when mounting direction flexibility is required |
| Super Indexing Plate | Repeatable indexing with stronger support | Use when stable indexing and chuck mounting are needed |
| Simple Indexing Plate | Basic fixed-angle indexing | Use when the process only needs simple division positions |
| Universal Dividing Head | Gear, spline and polygon machining | Use when controlled angular division is required |
| TS-A Series Rotary Table | Larger horizontal rotary table work | Use when table size and stable horizontal positioning are priorities |
| Tilting Rotary Table | Inclined and multi-angle machining | Use when the workpiece must be tilted from 0° to 90° |
A dividing head is commonly used for controlled angular division such as gear, spline or polygon machining. A rotary table is used for rotary positioning on a machine table and may be mounted horizontally, vertically or with tilt depending on the series.
Choose a horizontal and vertical rotary table when the workpiece needs rotary positioning in more than one mounting direction. It is useful when the same setup may require horizontal or vertical machining.
A super indexing plate is used when stronger indexing support and repeatable angular positioning are required. A simple indexing plate is more suitable for basic fixed division positions and lighter indexing work.
Use a tilting rotary table when the workpiece must be positioned at an inclined angle. It is suitable for multi-angle milling and machining operations that require both rotation and tilt.
No. Indexing chucks are chuck-based workholding products used for spindle-side indexing and clamping. Dividing heads and rotary tables are machine table accessories used for angular positioning, rotary support and milling setups.
Please provide the machine type, table size, workpiece dimensions, workpiece weight, required indexing angle, mounting direction and machining process. Drawings or photos of the current setup can also help confirm the suitable series.
