TS-A Series Rotary Table
TS-A series rotary tables are used for horizontal rotary positioning, indexing and circular machining operations. They are suitable for larger workpieces and machine-table setups requiring stable rotary support.
Product Overview
This series covers TS160A to TS1250A with table diameters from φ160 to φ1250 mm. It is used for horizontal rotary positioning and indexing where table load capacity, transmission ratio and installation interface must be clearly matched to the machining setup.
Typical Applications
- Horizontal rotary positioning for milling and drilling operations.
- Circular hole patterns and indexing operations on larger workpieces.
- Machine-table setups that need stable rotary support under heavier loads.
- Projects requiring clear table-size and load-capacity matching.
Key Features
Wide model range from TS160A to TS1250A.
Clear table diameter and load-capacity matrix for selection.
Transmission ratio and accuracy data for indexing setup checks.
T-slot and interface dimensions for installation planning.
Suitable for larger horizontal rotary positioning tasks.
Parameters and Dimensions

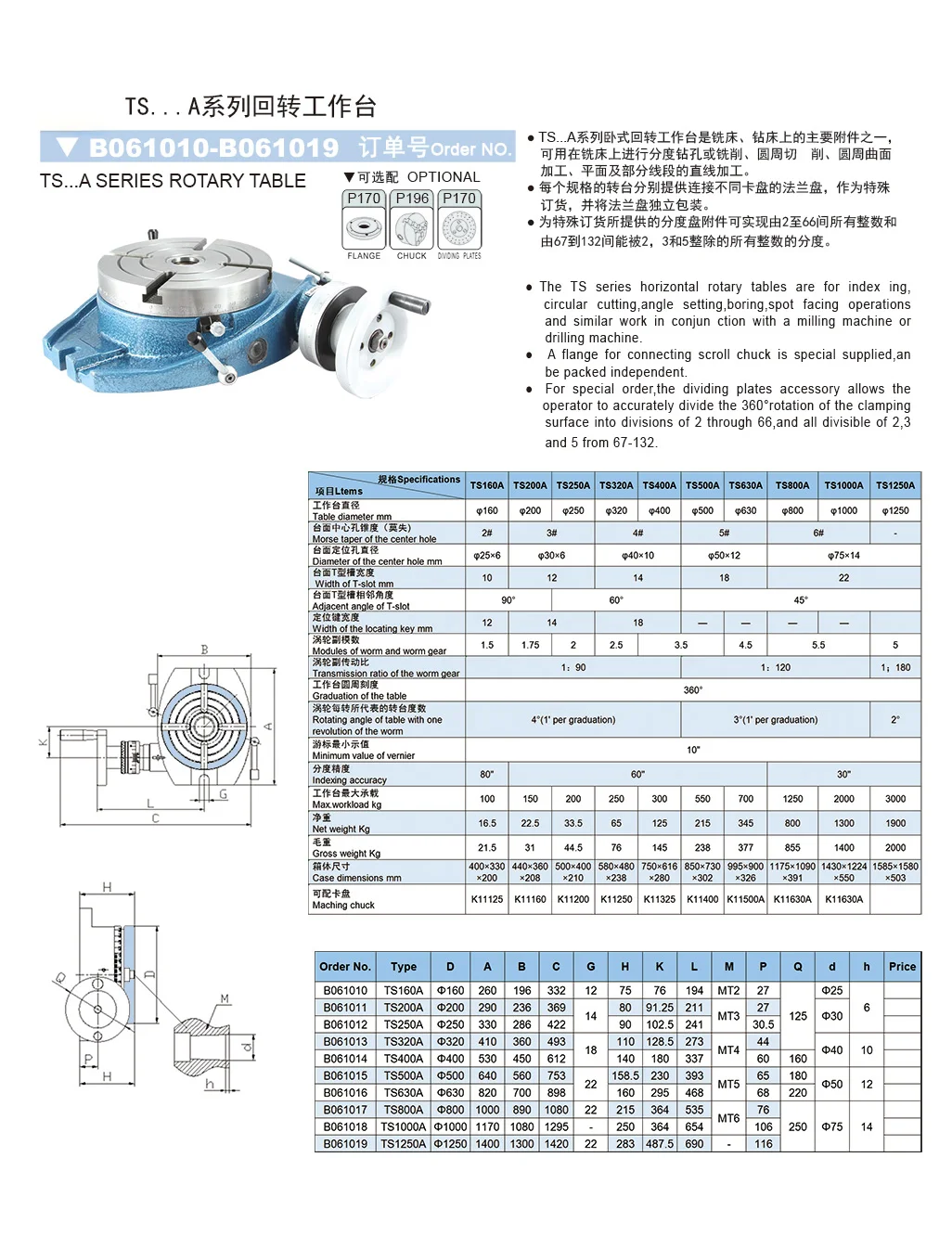

Dimension drawings and tabulated data below can be used for selection and installation checks.
Specification Matrix
| Item | TS160A | TS200A | TS250A | TS320A | TS400A | TS500A | TS630A | TS800A | TS1000A | TS1250A |
|---|---|---|---|---|---|---|---|---|---|---|
| Table Diameter (mm) | φ160 | φ200 | φ250 | φ320 | φ400 | φ500 | φ630 | φ800 | φ1000 | φ1250 |
| Center Taper (Morse) | 2# | 3# | 3# | 4# | 4# | 5# | 5# | 6# | 6# | — |
| Center Bore Diameter | φ25×6 | φ30×6 | φ30×6 | φ40×10 | φ40×10 | φ50×12 | φ50×12 | φ75×14 | φ75×14 | — |
| T-slot Width (mm) | 10 | 12 | 12 | 14 | 14 | 18 | 18 | 22 | 22 | 22 |
| Adjacent T-slot Angle | 90° | 90° | 90° | 60° | 60° | 60° | 60° | 45° | 45° | 45° |
| Locating Key Width (mm) | 12 | 14 | 14 | 18 | 18 | — | — | — | — | — |
| Worm Module | 1.5 | 1.75 | 2 | 2.5 | 3.5 | 3.5 | 4.5 | 5.5 | 5.5 | 5 |
| Worm Ratio | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | 1:120 | 1:120 | 1:120 | 1:180 |
| Table Circumferential Scale | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Table Angle per Worm Revolution | 4° | 4° | 4° | 4° | 4° | 4° | 3° | 3° | 3° | 2° |
| Vernier Minimum Reading | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" |
| Indexing Accuracy | 80" | 80" | 80" | 60" | 60" | 60" | 30" | 30" | 30" | 30" |
| Max Table Load (kg) | 100 | 150 | 200 | 250 | 300 | 550 | 700 | 1250 | 2000 | 3000 |
| Net Weight (kg) | 16.5 | 22.5 | 33.5 | 65 | 125 | 215 | 345 | 800 | 1300 | 1900 |
| Gross Weight (kg) | 21.5 | 31 | 44.5 | 76 | 145 | 238 | 377 | 855 | 1400 | 2000 |
| Packing Size (mm) | 400×330×200 | 440×360×208 | 500×400×210 | 580×480×238 | 750×616×280 | 850×730×302 | 995×900×326 | 1175×1090×391 | 1430×1224×550 | 1585×1580×503 |
| Compatible Chuck | K11125 | K11160 | K11200 | K11250 | K11325 | K11400 | K11500A | K11630A | K11630A | — |
Order Dimension Table
Dimensions are in mm; “—” means no corresponding configuration.
| Order No. | Model | D | A | B | C | G | H | K | L | M | P | Q | d | h |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B061010 | TS160A | Φ160 | 260 | 196 | 332 | 12 | 75 | 76 | 194 | MT2 | 27 | Φ25 | 6 | |
| B061011 | TS200A | Φ200 | 290 | 236 | 369 | 14 | 80 | 91.25 | 211 | MT3 | 27 | 125 | Φ30 | 6 |
| B061012 | TS250A | Φ250 | 330 | 286 | 422 | 14 | 90 | 102.5 | 241 | MT3 | 30.5 | 125 | Φ30 | 6 |
| B061013 | TS320A | Φ320 | 410 | 360 | 493 | 18 | 110 | 128.5 | 273 | MT4 | 44 | 160 | Φ40 | 10 |
| B061014 | TS400A | Φ400 | 530 | 450 | 612 | 18 | 140 | 180 | 337 | MT4 | 60 | 160 | Φ40 | 10 |
| B061015 | TS500A | Φ500 | 640 | 560 | 753 | 22 | 158.5 | 230 | 393 | MT5 | 65 | 180 | Φ50 | 12 |
| B061016 | TS630A | Φ630 | 820 | 700 | 898 | 22 | 160 | 295 | 468 | MT5 | 68 | 220 | Φ50 | 12 |
| B061017 | TS800A | Φ800 | 1000 | 890 | 1080 | 22 | 215 | 364 | 535 | MT6 | 76 | 250 | Φ75 | 14 |
| B061018 | TS1000A | Φ1000 | 1170 | 1080 | 1295 | — | 250 | 364 | 654 | MT6 | 106 | 250 | Φ75 | 14 |
| B061019 | TS1250A | Φ1250 | 1400 | 1300 | 1420 | 22 | 283 | 487.5 | 690 | — | 116 |
Selection Notes
- Machine model and available table installation space.
- Required table diameter and maximum workpiece load.
- Center taper, T-slot and interface requirements.
- Required indexing accuracy and transmission ratio expectations.
- Process details and whether compatible chuck support is needed.
FAQ
What is the TS-A Series Rotary Table used for?
It is used for horizontal rotary positioning, indexing and circular machining operations, especially on larger workpieces and machine-table setups.
How is it different from a chuck or an indexing chuck?
A rotary table is installed on the machine table for workpiece positioning. It is not a spindle-side chuck or an indexing chuck used for turning applications.
How is it different from RT-HV or a tilting rotary table?
TS-A is mainly selected for larger horizontal rotary table work. RT-HV focuses on horizontal and vertical mounting flexibility, while a tilting rotary table is selected when angular tilt positioning is required.
What machine table or mounting interface should be confirmed?
Check the machine table size, T-slot layout, mounting bolt pattern, center bore requirement and the available installation space.
What workpiece size or load should be checked?
Confirm the workpiece diameter, weight, fixture height, eccentric load and overhang so the selected table size and load capacity are appropriate.
What positioning or indexing accuracy should be confirmed?
The required angular positioning, repeatability and division method should be checked against the machining tolerance and process sequence.
What should be checked before installation?
Check the horizontal mounting surface, fixture interference, lubrication condition, handle operating space and the machine travel envelope before installation.
What information is needed for quotation?
Please provide the machine model, required table diameter, workpiece dimensions, workpiece weight, indexing requirement and the intended machining process.
