Bull Nose Center
Bull nose centers provide a wider contact surface for supporting hollow workpieces, tubes, sleeves and bore-type parts. They are used when a standard pointed center is not suitable for the workpiece geometry.
Send the bore size, workpiece outer diameter, support surface, Morse taper and workpiece weight, and we will help check whether this bull nose center series fits your setup.
Product Overview
A bull nose center supports a tube or hollow workpiece at its bore edge. Its broad conical nose provides contact where a pointed center cannot reach a standard center hole. Select it from the workpiece bore, contact angle and tailstock taper.
How a Bull Nose Center Supports a Workpiece
Instead of entering a small standard center hole with a pointed tip, the broad conical or bell-shaped nose contacts a larger bore edge or internal support surface. Tailstock thrust is therefore transferred through a wider contact diameter, which can support tubes, sleeves and hollow workpieces that cannot use an ordinary point. The contact angle and diameter must match the workpiece geometry; whether the selected assembly is rotating or fixed must also be confirmed from the specific model and machine setup.
Typical Applications
- Hollow workpieces
- Tubes and sleeve-type parts
- Bore-type workpieces
- Large contact tailstock support
- Turning applications where a pointed center is not suitable
Key Features
Bull nose support shape
Larger contact area than a standard pointed center
Suitable for hollow and bore-type workpieces
Multiple size options for different workpiece diameters
Practical for tube, sleeve and ring-type workpiece support
Parameters and Dimensions

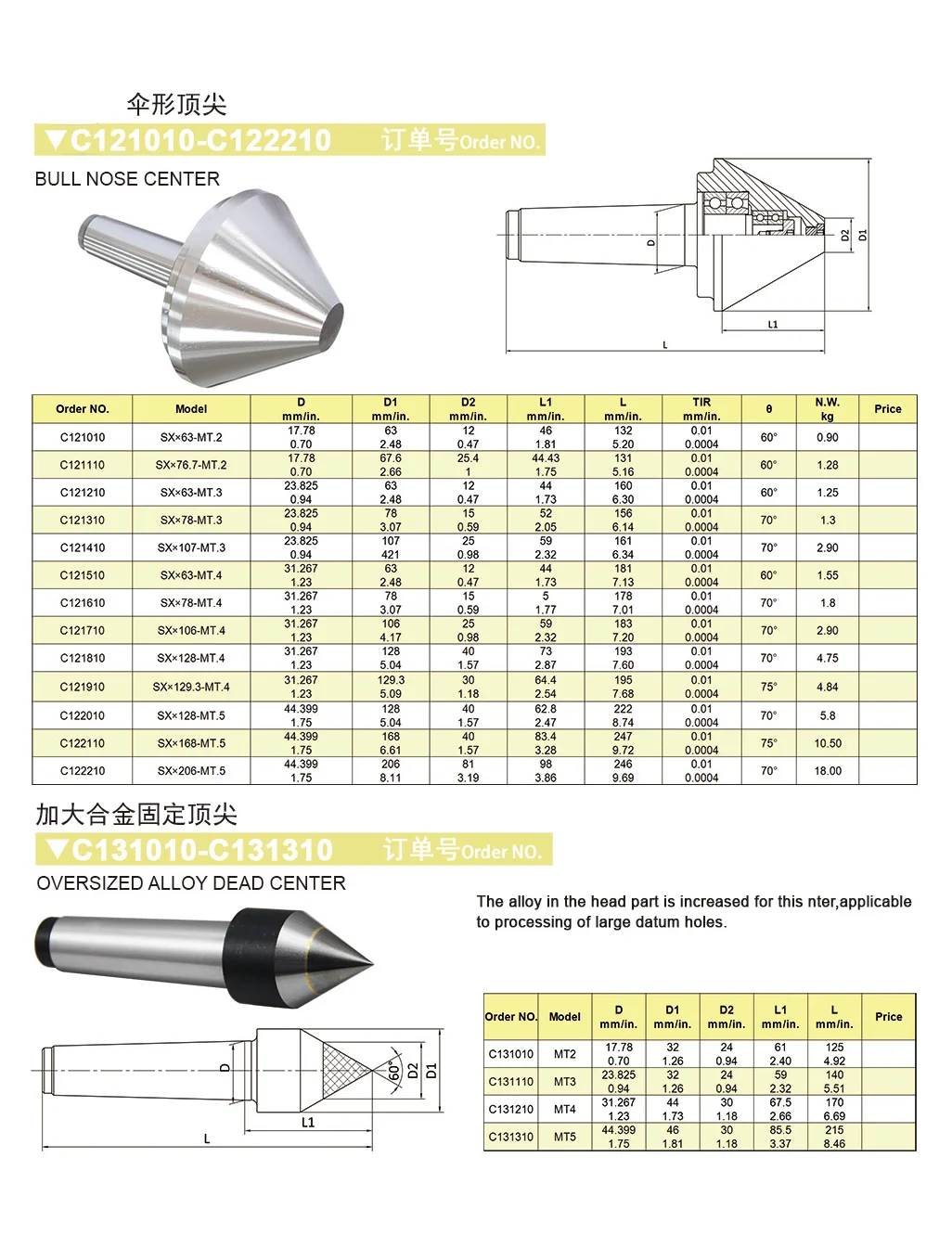

Use the dimension drawing and parameter table below to verify taper size, dimensions and key support parameters before model selection.
| Order No. | Model | D (mm) | D1 Bull Nose Diameter (mm) | D2 (mm) | l Head Length (mm) | L Overall Length (mm) | Tip Angle | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| C121010 | SX×63-MT.2 | 17.78 | 63 | 12 | 46 | 132 | 60° | 0.90 |
| C121110 | SX×76.7-MT.2 | 17.78 | 67.6 | 25.4 | 44.43 | 131 | 60° | 1.28 |
| C121210 | SX×63-MT.3 | 23.825 | 63 | 12 | 44 | 160 | 60° | 1.25 |
| C121310 | SX×78-MT.3 | 23.825 | 78 | 15 | 52 | 156 | 70° | 1.3 |
| C121410 | SX×107-MT.3 | 23.825 | 107 | 25 | 59 | 161 | 70° | 2.90 |
| C121510 | SX×63-MT.4 | 31.267 | 63 | 12 | 44 | 181 | 60° | 1.55 |
| C121610 | SX×78-MT.4 | 31.267 | 78 | 15 | 45 | 178 | 70° | 1.8 |
| C121710 | SX×106-MT.4 | 31.267 | 106 | 25 | 59 | 183 | 70° | 2.90 |
| C121810 | SX×128-MT.4 | 31.267 | 128 | 40 | 73 | 193 | 70° | 4.75 |
| C121910 | SX×129.3-MT.4 | 31.267 | 129.3 | 30 | 64.4 | 195 | 75° | 4.84 |
| C122010 | SX×128-MT.5 | 44.399 | 128 | 40 | 62.8 | 222 | 70° | 5.8 |
| C122110 | SX×168-MT.5 | 44.399 | 168 | 40 | 83.4 | 247 | 75° | 10.50 |
| C122210 | SX×206-MT.5 | 44.399 | 206 | 81 | 98 | 246 | 70° | 18.00 |
Image Gallery
Selection Notes
Use the drawing to compare the bore edge with the conical contact surface. The contact must fall on the cone, with clearance between the workpiece and the center shoulder. Check both the nose diameter and the opening in the workpiece.
The table includes 60° and 70° tip angles, along with different head lengths and overall lengths. Choose the row that matches the end geometry and gives room for the cutting tool and tailstock.
For shafts with a conventional center hole, compare the medium-duty live center. For workpieces that need several tip shapes, see the interchangeable-insert live center.
When a Bull Nose Center Is Not Suitable
Do not use a bull nose center when its cone angle or contact diameter does not match the workpiece, when the tube wall or bore edge cannot safely accept the tailstock thrust, or when the machine taper and support load are unknown. It is also unsuitable if the required tool path collides with the larger nose profile. A standard pointed center or a purpose-designed internal support may be better for small center holes, thin unsupported edges or restricted access.
FAQ
What is a bull nose center used for?
A bull nose center is used when the workpiece needs a larger support contact area than a standard pointed center can provide. It is commonly selected for tube parts, sleeve parts and workpieces with larger internal support surfaces.
Is it a live center or a special supporting center?
It is a special lathe center selected for larger contact support conditions. Final use should still be confirmed according to the machine taper, support form and workpiece structure.
What machine taper should be confirmed?
Please confirm the tailstock taper or machine center interface before selection. The bull nose center must match the machine-side taper specification.
What workpiece support condition should be checked?
Please confirm the workpiece bore, end-face support area, contact diameter and support position. These factors determine whether a bull nose center is the right choice.
What speed or load should be considered?
Please confirm the spindle speed, workpiece weight and support load. These conditions affect whether a larger-contact center is suitable for the actual machining process.
How is it different from a standard pointed center?
A standard pointed center is used for normal center-hole support. A bull nose center provides a wider contact area and is selected for workpieces that cannot be supported effectively by a standard pointed tip.
What should be checked before installation?
Check the machine taper, contact surface condition, support area size and running speed before installation. The center and mating surfaces should be clean and correctly fitted.
What information is needed for quotation?
Please provide the machine taper, workpiece drawing, support bore or contact diameter, workpiece weight, speed range and machining process.
