Multi-Workpiece Precision Vise
Multi-workpiece precision vises are used for clamping several small parts or similar workpieces in one setup. They help improve batch machining efficiency and are suitable for workpiece family processing on machining centers.
Send the number of workpieces per setup, part size, clamping direction, machine table space and batch quantity, and we will help check whether this multi-workpiece vise series fits your process.
Product Overview
The KORRETTO multi-workpiece precision vise is designed for clamping multiple small parts or similar workpieces in one setup. It is suitable for batch production where several parts can be positioned and machined together.
Typical Applications
- Small-part batch machining
- Workpiece family processing
- Multi-position clamping
- Milling and machining center workholding
- Production setups requiring several parts in one fixture
Key Features
Multi-workpiece clamping structure
Suitable for batch machining of small parts
Helps reduce repeated setup time
Supports workpiece family production
Practical for machining center production layouts
Parameters and Dimensions

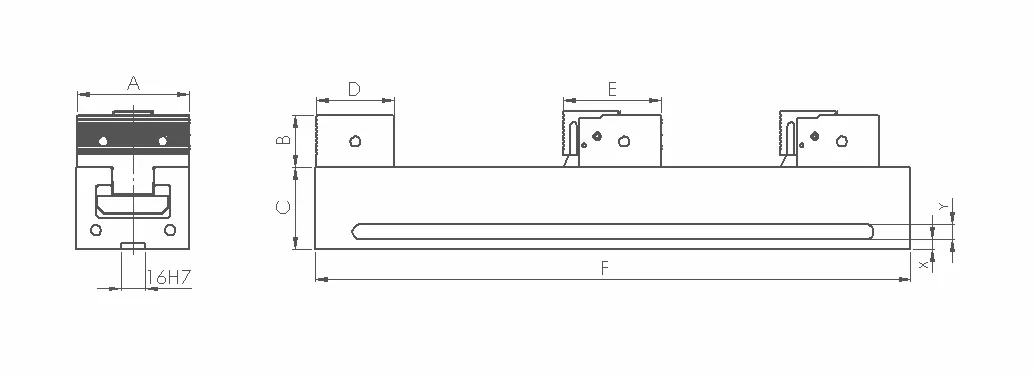

Dimension drawing for multi-workpiece precision vise series. Confirm jaw range, main dimensions and machine table clearance before selection. Dimensions in the table are in mm; weight is in kg.
| Model | A | B | C | D | E (Height) | F (Length) | X | Y | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 75×400 | 75 | 35 | 55 | 52 | 65/70 | 400 | 7 | 10 | 13.3 |
| 75×500 | 75 | 35 | 55 | 52 | 65/71 | 500 | 7 | 10 | 15.4 |
| 75×600 | 75 | 35 | 55 | 52 | 65/72 | 600 | 7 | 10 | 17.5 |
| 75×700 | 75 | 35 | 55 | 52 | 65/73 | 700 | 7 | 10 | 19.6 |
| 100×400 | 100 | 35 | 55 | 52 | 65/70 | 400 | 7 | 10 | 16.2 |
| 100×500 | 100 | 35 | 55 | 52 | 65/71 | 500 | 7 | 10 | 19.1 |
| 100×600 | 100 | 35 | 55 | 52 | 65/72 | 600 | 7 | 10 | 22 |
| 100×700 | 100 | 35 | 55 | 52 | 65/73 | 700 | 7 | 10 | 25 |
Image Gallery
Selection Notes
Before selecting a multi-workpiece precision vise, confirm the number of parts per setup, workpiece size, clamping direction, machine table space and production batch. This series is suitable when multiple similar parts need to be clamped together.
FAQ
What is a multi-workpiece precision vise used for?
A multi-workpiece precision vise is used to clamp several small parts or similar workpieces in one setup. It is suitable for batch machining and workpiece family production.
How is it different from a double-station vise?
A double-station vise usually focuses on two clamping positions. A multi-workpiece vise is arranged for several smaller parts or part families in one setup to increase workpiece count per cycle.
What workpieces are suitable for this vise?
It is suitable for smaller workpieces, repeat parts and workpiece families that can be grouped together without interfering with machining access or clamping force distribution.
How many parts can be clamped in one setup?
The number depends on the part width, jaw arrangement, machine table space and the required cutting clearance between adjacent workpieces.
What machine table or part spacing should be checked?
Please confirm the machine table size, available stroke, fixture space, part spacing and cutting approach around each workpiece position.
Is it suitable for batch production?
Yes. A multi-workpiece precision vise is typically selected for batch production when loading several small parts together improves efficiency.
What should be checked before installation?
Check the mounting method, parallel seating, clamping order, workpiece spacing and machine travel before installation.
What information is needed for quotation?
Please provide the number of workpieces per setup, part dimensions, clamping direction, machine table space, batch size and machining process.
