Double-Station Precision Vise
Double-station precision vises allow two workpieces to be clamped in one vise body. They are suitable for paired machining, repeat production and machining center setups that require higher spindle utilization.
Send the workpiece size, paired clamping requirement, batch quantity, machine table layout and jaw opening requirement, and we will help check whether this double-station vise series fits your setup.
Product Overview
The KORRETTO double-station precision vise is designed for clamping two workpieces in one setup. It helps improve machining efficiency when similar parts can be processed together on milling machines or machining centers.
Typical Applications
- Two-part clamping
- Paired machining
- Repeat production
- Milling and machining center workholding
- Applications requiring higher spindle utilization
Key Features
Double-station clamping structure
Suitable for paired machining of similar workpieces
Helps improve production efficiency
Stable mechanical clamping for milling operations
Multiple models available for different workpiece sizes
Parameters and Dimensions

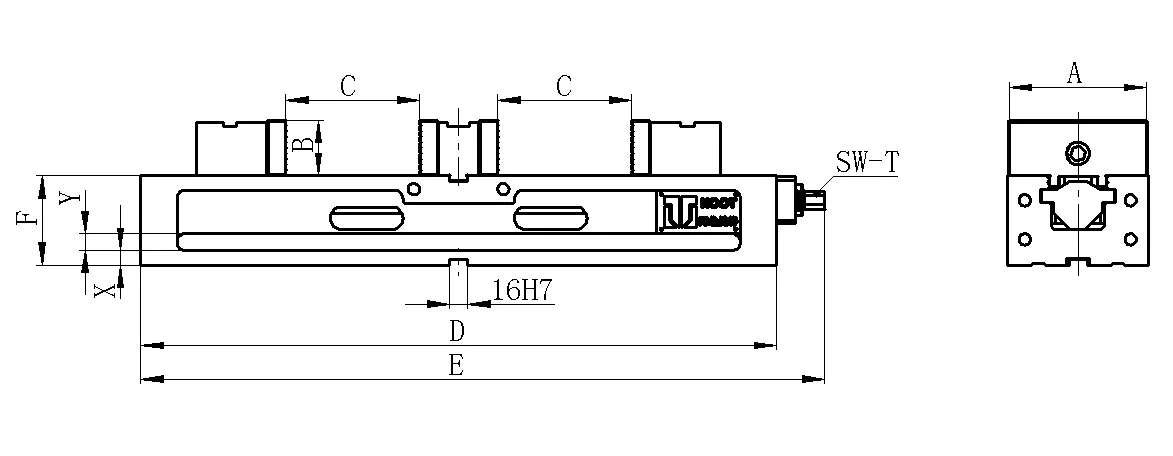

Dimension drawing for double-station precision vise series. Confirm jaw range, main dimensions and machine table clearance before selection. Dimensions in the table are in mm; weight is in kg.
| Model | A | B | C | D | E | F | X | Y | T | Clamping Force (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100×75 | 100 | 40 | 75 | 370 | 411 | 70 | 11 | 13 | 14 | 12 | 21.2 |
| 100×125 | 100 | 40 | 125 | 470 | 511 | 70 | 11 | 13 | 14 | 12 | 24.7 |
| 125×60 | 125 | 50 | 60 | 370 | 411 | 80 | 13 | 15 | 14 | 16 | 37.4 |
| 125×110 | 125 | 50 | 110 | 470 | 511 | 80 | 13 | 15 | 14 | 16 | 42.1 |
| 150×75 | 150 | 60 | 75 | 420 | 476 | 90 | 15 | 15 | 19 | 21 | 60.4 |
| 150×125 | 150 | 60 | 125 | 520 | 576 | 90 | 15 | 15 | 19 | 21 | 68.3 |
| 200×75 | 200 | 65 | 75 | 470 | 541 | 100 | 17 | 18 | 22 | 28 | 108.2 |
| 200×125 | 200 | 65 | 125 | 570 | 641 | 100 | 17 | 18 | 22 | 28 | 118.6 |
Image Gallery
Selection Notes
Before selecting a double-station precision vise, confirm whether two workpieces can be clamped and machined in one setup. Check the part size, paired clamping direction, jaw opening, table space and required repeatability.
FAQ
What is a double-station precision vise used for?
A double-station precision vise is used to clamp two workpieces in one vise body. It is suitable for paired machining and repeat production where two similar parts can be machined in one setup.
When should I choose a double-station vise instead of a standard vise?
Choose a double-station vise when two workpieces can be clamped and processed together. A standard vise is more suitable for general single-part clamping.
How is it different from a multi-workpiece vise?
A double-station vise is typically used for two parts or two clamping positions in one body. A multi-workpiece vise is intended for several smaller parts arranged together in one setup.
What workpieces are suitable for a double-station vise?
It is suitable for similar parts that can be machined in matched pairs, or for repeat production where two clamping positions improve machine table efficiency.
What machine table or setup space should be checked?
Please confirm the machine table size, available mounting area, stroke space and the cutting envelope needed for two-part machining in one setup.
Can two different parts be clamped at the same time?
In some cases yes, but the workpiece size, clamping height, load balance and machining sequence must be checked carefully. Double-station arrangements work best when the clamping conditions are similar.
What should be checked before installation?
Check the machine table space, fastening method, parallel mounting condition and cutting clearance around both stations before installation.
What information is needed for quotation?
Please provide the workpiece size, paired machining requirement, jaw opening, machine table space, clamping direction, cutting process and batch quantity.
