KORRETTO · Machine vise series
5-Axis Precision Vise
5-axis precision vises use a compact and low-profile structure to improve tool access during multi-sided machining. They are suitable for 5-axis machines and machining centers that require larger tool approach angles and reduced fixture interference.
Send the machine type, workpiece size, tool access requirement, clamping direction and 5-axis machining process, and we will help check whether this 5-axis precision vise series fits your setup.
Product Overview

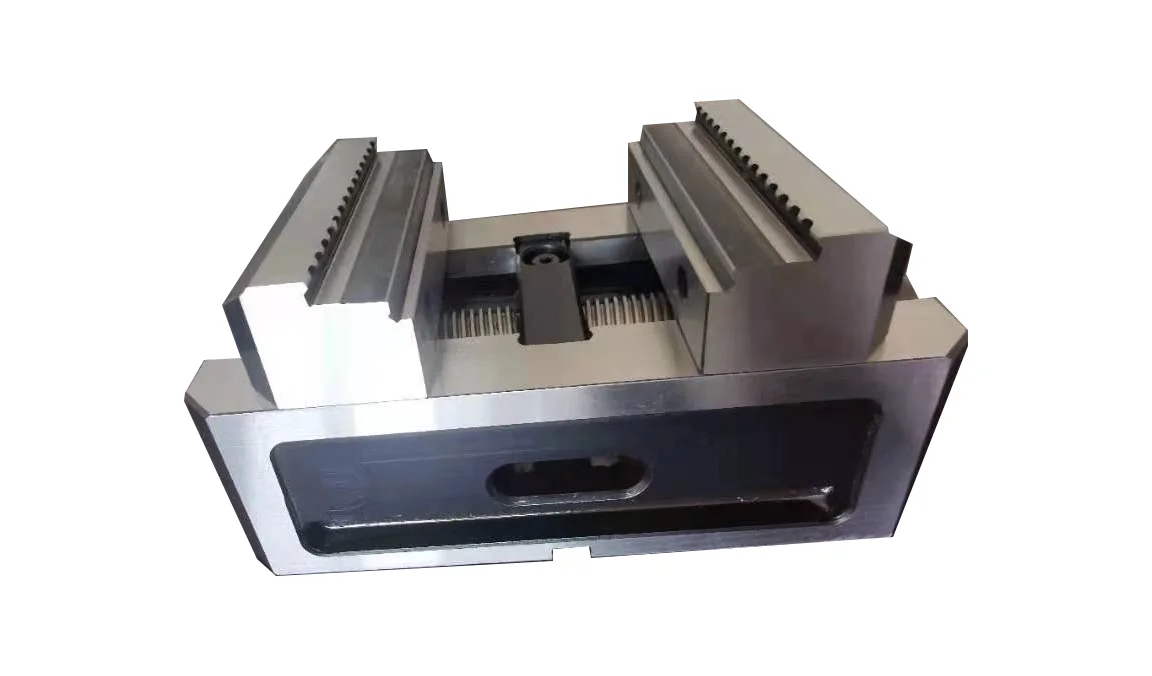

The KORRETTO 5-axis precision vise is designed for low-profile workholding on 5-axis machines and machining centers. It helps improve tool access during multi-sided machining and reduces fixture interference around the workpiece.
Typical Applications
- 5-axis machining
- Multi-sided milling
- Low-profile workholding
- Workpieces requiring better tool access
- Machining setups where fixture interference should be reduced
Key Features
Low-profile 5-axis vise structure
Improved tool access for multi-sided machining
Suitable for 5-axis machining centers
Stable clamping for precision workholding
Multiple models available for different workpiece sizes
Parameters and Dimensions

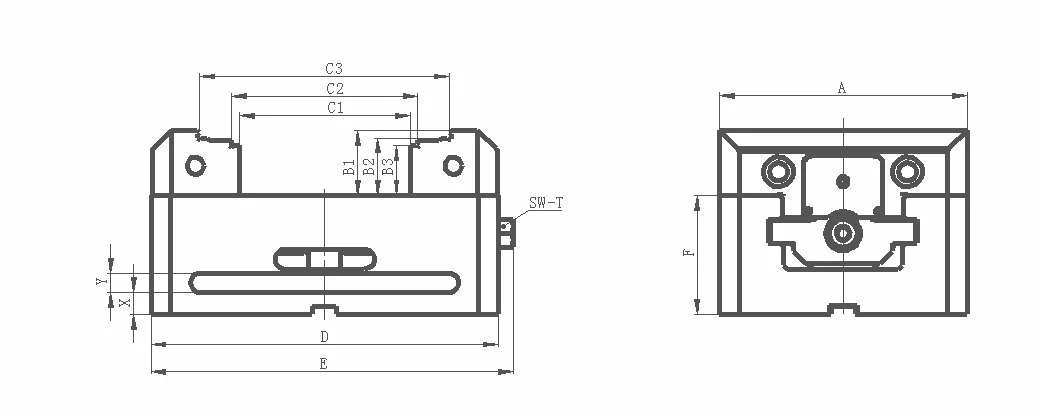

Dimension drawing for 5-axis precision vise series. Confirm jaw range, main dimensions and machine table clearance before selection. Dimensions in the table are in mm; weight is in kg.
| Model | A | B/B1/B2 | C/C1/C2 | D | E | F | X | d | T | Clamping Force (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 75×85 | 75 | 25/20/16 | 85/55/47 | 100 | 108 | 45 | 52 | 12 | 12 | 20 | 2.83 |
| 75×125 | 75 | 25/20/16 | 125/95/87 | 140 | 148 | 45 | 52 | 12 | 12 | 20 | 3.57 |
| 100×125 | 100 | 30/25/20 | 125/85/77 | 140 | 148 | 50 | 52 | 12 | 12 | 26 | 5.99 |
| 100×165 | 100 | 30/25/20 | 165/125/117 | 180 | 188 | 50 | 52 | 12 | 12 | 26 | 7.15 |
| 125×165 | 125 | 30/25/20 | 165/119/111 | 180 | 187 | 60 | 96 | 16 | 14 | 35 | 10.59 |
| 125×215 | 125 | 30/25/20 | 215/169/161 | 230 | 237 | 60 | 96 | 16 | 14 | 35 | 12.63 |
| 150×185 | 150 | 35/28/22 | 185/131/121 | 200 | 208 | 70 | 100 | 18 | 14 | 45 | 17.1 |
| 150×245 | 150 | 35/28/22 | 245/191/181 | 260 | 268 | 70 | 100 | 18 | 14 | 45 | 20.4 |
Image Gallery
Selection Notes
Before selecting a 5-axis precision vise, confirm the machine type, workpiece size, required tool approach angle, fixture height, clamping direction and table space. This series is suitable when low-profile clamping and better tool access are required.
FAQ
What is a 5-axis precision vise used for?
A 5-axis precision vise is used for low-profile workholding on 5-axis machines and machining centers. It helps improve tool access during multi-sided machining.
Why use a 5-axis vise instead of a standard vise?
A 5-axis vise has a more compact and low-profile structure, which reduces fixture interference and allows better tool approach angles. A standard vise is more suitable for general single-part clamping.
How is a 5-axis precision vise different from other machine vises?
A 5-axis precision vise is designed to keep the clamping structure compact and low, so cutting tools can approach the workpiece from more directions. It is more suitable for multi-sided machining than a standard machine vise.
What machine table or fixture interface should be confirmed?
Please confirm the machine table size, fixture base pattern, mounting slot arrangement and available setup space before selection. These conditions affect whether the 5-axis vise can be mounted without interfering with the machining envelope.
What workpiece size or clamping height should be checked?
Please confirm the workpiece width, clamping height, required jaw opening and the amount of material that must remain accessible to the cutting tool. A 5-axis vise is selected when low-profile clamping is important.
What accuracy or repeatability requirement should be confirmed?
Please confirm the required positioning repeatability, datum strategy and machining tolerance. These factors help determine whether the 5-axis vise structure is appropriate for the process.
What should be checked before installation?
Check the mounting surface flatness, fastening method, jaw condition, clamping direction and machine travel before installation. The vise should be seated securely and aligned to the intended machining datum.
What information is needed for quotation?
Please provide the machine type, table or fixture interface, workpiece size, clamping height, machining process, required tool access and batch quantity.
