Permanent Magnet Lifter
Permanent magnet lifters are used for lifting and handling ferromagnetic plates, blocks and workpieces. They are suitable for workshop handling, machining preparation and material movement where magnetic lifting is required.
Send the workpiece weight, material, surface condition, lifting method and safety requirement, and we will help check the suitable permanent magnet lifter model.
Product Overview
Permanent magnet lifters are magnetic lifting devices for ferromagnetic workpieces. They are used for lifting, moving and positioning plates, blocks and similar workpieces, and should be selected according to workpiece weight, shape, material and surface condition.
Typical Applications
- Lifting ferromagnetic plates and blocks
- Workshop material handling
- Loading and unloading workpieces
- Machining preparation and material movement
- Handling workpieces where hooks or clamps are not convenient
Key Features
Magnetic lifting device, not a grinding table chuck
Suitable for ferromagnetic workpiece handling
Multiple lifting capacity options
Selection depends on workpiece weight and surface condition
Designed for lifting / handling logic, not magnetic grinding workholding
Parameters and Dimensions
Use the dimension information and parameter table below to verify model details before selection.

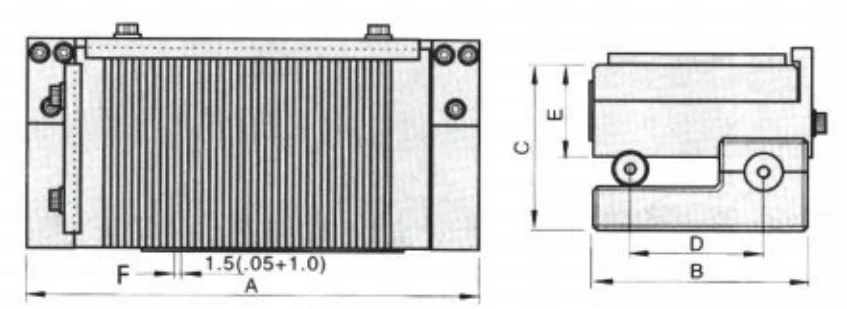

Dimension Drawing
| Model | Rated Lifting Capacity (kg) | Main Dimensions (mm) | Maximum Pull-Off Force (N) | Net Weight (kg) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| PML-100 | 100 | 92 | 62 | 67 | 128 | 3500 | 3 |
| PML-300 | 300 | 162 | 92 | 91 | 150 | 10500 | 10 |
| PML-600 | 600 | 232 | 122 | 117 | 196 | 21000 | 24 |
| PML-1000 | 1000 | 258 | 176 | 163 | 284 | 35000 | 50 |
| PML-2000 | 2000 | 378 | 234 | 212 | 426 | 70000 | 90 |
| PML-3000 | 3000 | 458 | 286 | 264 | 521 | 105000 | 125 |
Selection Notes
Please provide workpiece weight, material, contact surface condition, workpiece shape and lifting method.
FAQ
What is a permanent magnet lifter used for?
It is used for lifting and handling ferromagnetic plates, blocks and workpieces in workshop and machining environments.
Is a permanent magnet lifter the same as a magnetic chuck?
No. A permanent magnet lifter is used for lifting and handling, while magnetic chucks are used for holding workpieces on machine tables.
What information should I provide for model selection?
Please provide workpiece weight, material, contact surface condition, workpiece shape and lifting method.
What lifting capacity and safety margin should be confirmed?
Please confirm the actual workpiece weight, lifting orientation and required safety margin so the selected permanent magnet lifter has enough rated capacity for the task.
What material, thickness and contact surface should be checked?
Please confirm the workpiece is ferromagnetic and provide the plate thickness, contact width, surface condition and whether the part is flat enough for secure magnetic contact.
Can it be used for plates, blocks or round workpieces?
It can be used for many ferromagnetic plates, blocks and some shaped workpieces when the contact area and balance are suitable, but the lifting method must match the workpiece geometry.
What should be checked before lifting?
Check the workpiece material, contact surface, lifter capacity, handle lock condition, balance of the load and the safety procedure before every lift.
What information is needed for quotation?
Please provide the workpiece weight, dimensions, material, thickness, lifting method, contact condition and working environment so the suitable permanent magnet lifter model can be recommended.
