KORRETTO · Lathe center series
Multifunctional External Rotary Live Center Set
The multifunctional external rotary live center set is designed for flexible tailstock support in different turning applications. It combines a live center body with multiple support accessories so one set can adapt to different shaft, sleeve and workpiece support conditions.
Send the Morse taper, workpiece type, support surface, accessory requirement and machining process, and we will help check whether this multifunctional live center set fits your setup.
Product Overview
The KORRETTO multifunctional external rotary live center set is designed for turning applications that require several support forms in one set. It is suitable when different workpieces or support surfaces need to be handled without changing to multiple dedicated live centers.
Typical Applications
- Multi-application shaft turning
- Workpieces requiring different support accessories
- Sleeve, shaft and ring-type support conditions
- Flexible lathe tailstock support
- Turning setups requiring MT2 to MT4 options
Key Features
Multifunctional live center set structure
Multiple accessories for different support forms
Suitable for varied shaft and sleeve workpieces
Helps reduce the need for several dedicated centers
MT2 to MT4 model options
Parameters and Dimensions

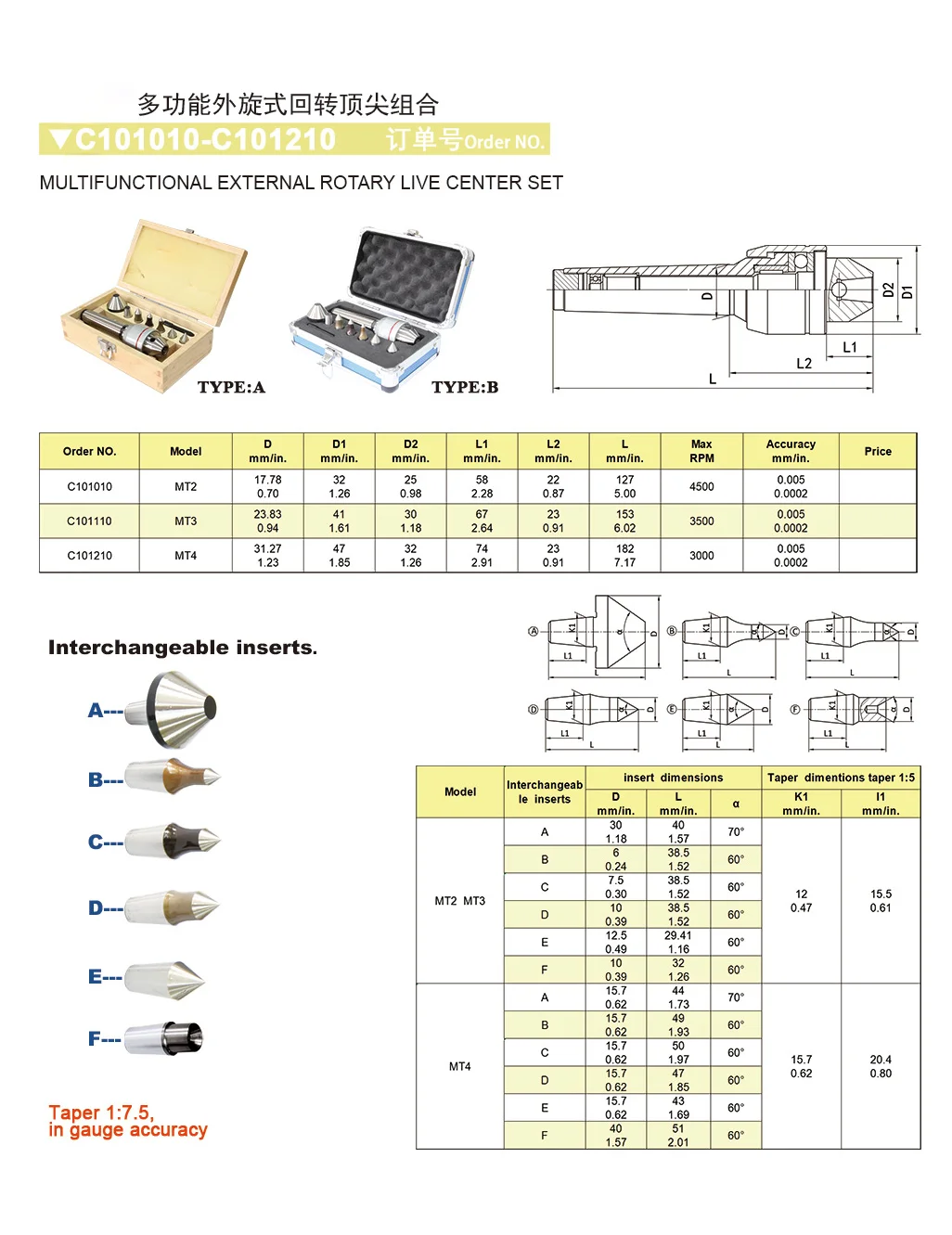

Use the dimension drawing and parameter table below to verify taper size, dimensions and key support parameters before model selection.
| Order No. | Model | D (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L2 (mm) | L (mm) | Max. RPM | Accuracy (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| C101010 | MT2 | 17.78 | 32 | 25 | 58 | 22 | 127 | 4500 | 0.005 | — |
| C101110 | MT3 | 23.83 | 41 | 30 | 67 | 23 | 153 | 3500 | 0.005 | — |
| C101210 | MT4 | 31.27 | 47 | 32 | 74 | 23 | 182 | 3000 | 0.005 | — |
Image Gallery
Selection Notes
Before selecting a multifunctional external rotary live center set, confirm the Morse taper, workpiece shape, support surface, required accessory form and machining process. This series is suitable when different workpieces need different support contact forms.
FAQ
What is a multifunctional external rotary live center set used for?
It is used when a turning setup needs external rotating support with different support heads or accessory forms. The set structure helps cover multiple workpiece support conditions with one center system.
Is it a complete center set or a single point center?
It is a center set rather than a single fixed-point center. The final selection should be confirmed according to the required support form and the included accessories or point style.
What machine taper should be confirmed?
Please confirm the tailstock taper or machine interface before selection. The center body in the set must match the machine taper correctly.
What workpiece support condition should be checked?
Please confirm the workpiece end form, support area, center-hole or contact shape and support load. These factors determine which center set configuration is appropriate.
What speed or load should be considered?
Please confirm the operating speed, support load and the specific support head or point used in the setup. The full set should be selected according to the real machining condition.
How is it different from a standard live center?
A standard live center usually uses one fixed support form. A multifunctional external rotary live center set is selected when multiple support forms or interchangeable use conditions are required.
What should be checked before installation?
Check the machine taper, selected support head, locking condition, workpiece support area and running speed before installation. The contact surfaces should be clean and securely fitted.
What information is needed for quotation?
Please provide the machine taper, workpiece drawing, required support form, workpiece weight, speed range and machining process.
